CONSTRUCTION,
EMERGENCY, RENTAL

>4450 M²
LIGHT FOOTPRINT

64 UNITS IN
A 13M TRUCK

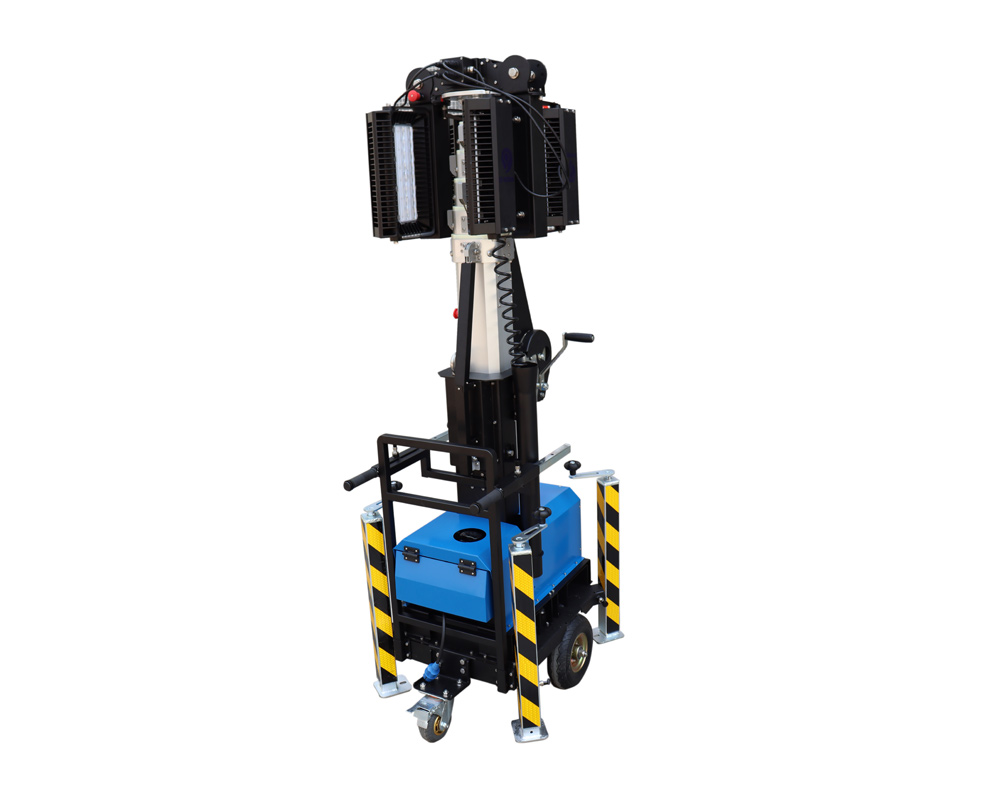

Helios is a new generation electric plug-in mobile lighting tower, that combines robust build
quality, with an innovative, powerful, performance in an extremely compact design.

With advanced light distribution, smart enabled control, simple maneuverability and a patent
pending safety system, Helios works safely and reliably in the many demanding conditions of
construction sites, outdoor events and temporary lighting applications.

KEY FEATURES

  • Brilliant Light Distribution High brightness at a long distance with minimal glare and impact on the local environment and traffic.
  • Safe Patent pending mast safety system
  • Robust 7m mast able to withstand wind loads at 110km/h
  • Smart Various light control options enable
  • Users to operate, dim and schedule lighting
  • Optional Electric or Manual winch versions available
  • Flexible Fast & easy maneuvering
  • Compact Small Footprint structure with unique fold down light head for compact transport
  • Environmentally friendly Zero emissions and virtually maintenance free

Specs
Model MLT
Illuminated surface 4,452 m2
System Power 1,200W / 1500W
Input 110-277VAC +/-10% 50/60Hz
Luminous Flux 168,000 lm
Lumen/W 140
Beam angle Ultra asymmetric
Ambient Operating Temp. Range  -40ºC to +45ºC
Elevation system Electric / Manual
Fully extended height 7 meters
Mast rotation 340°
Dimensions (min.) 788 x 658 x 2046 mm
Dimensions (max.) 1455 x 1752 x 6930 mm
Wind Resistance 110km/h

DOWNLOADS

Contact us for more information
